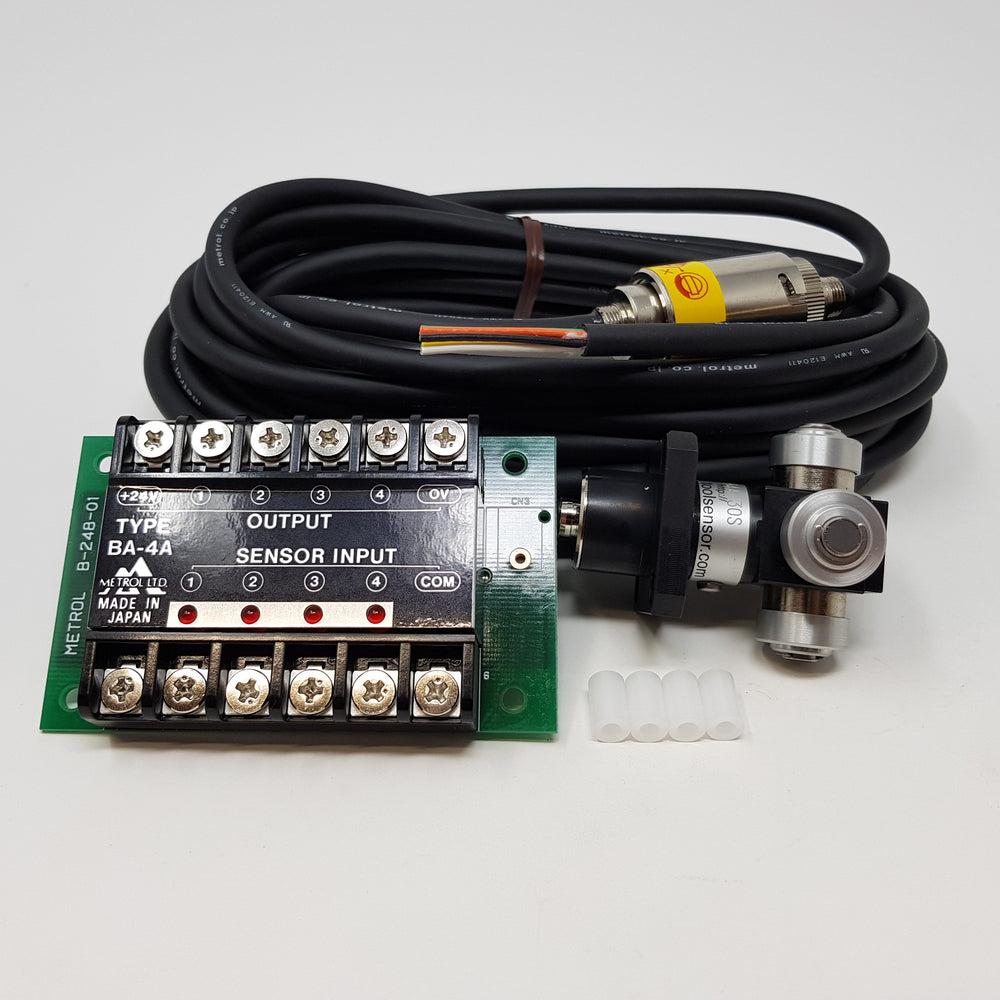

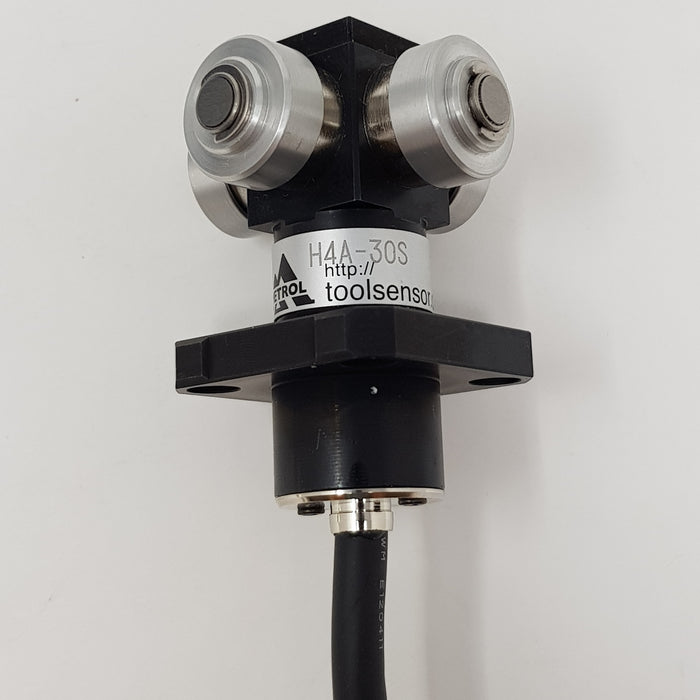

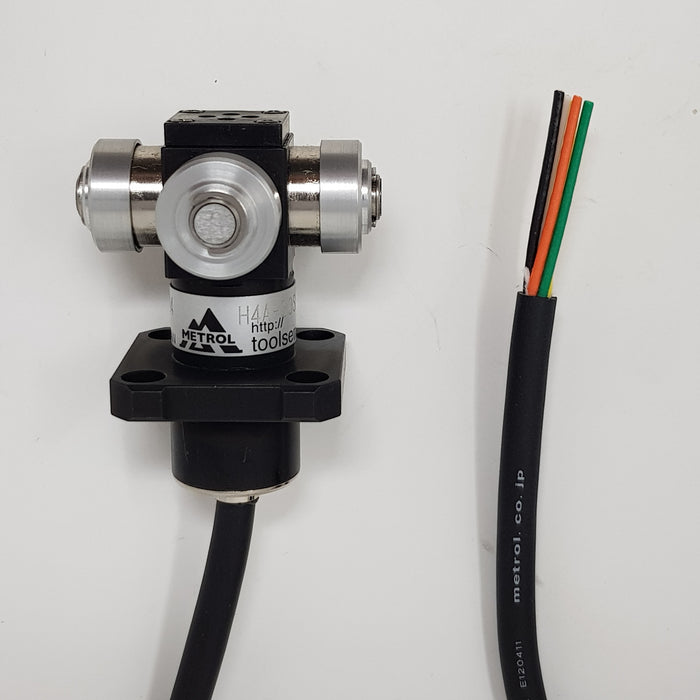

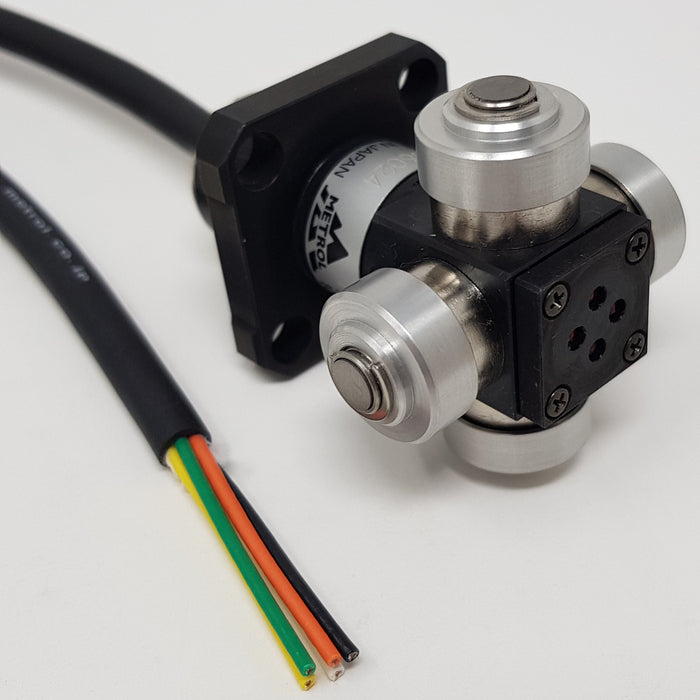

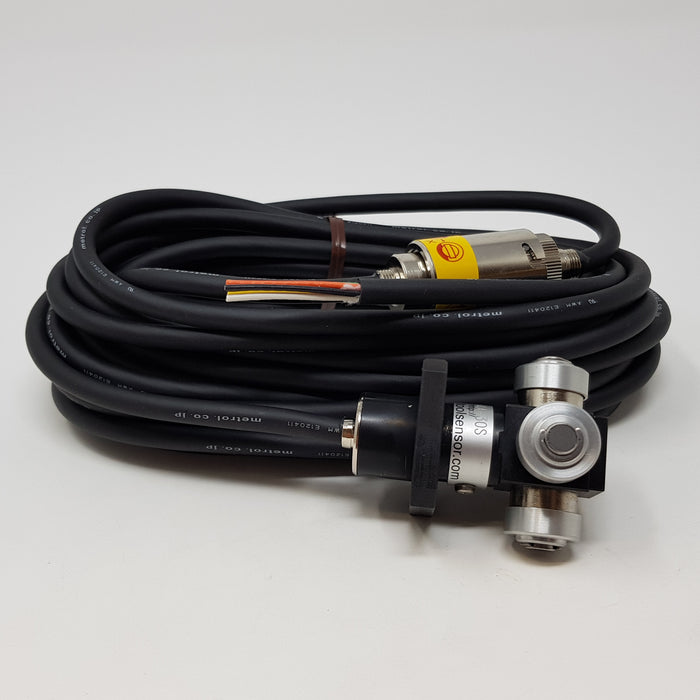

H4A-30S Metrol Tool Setter Probe
In Stock
For any enquiry or technical support,
please contact us on 0116 478 4200
Part Number: H4A-30S

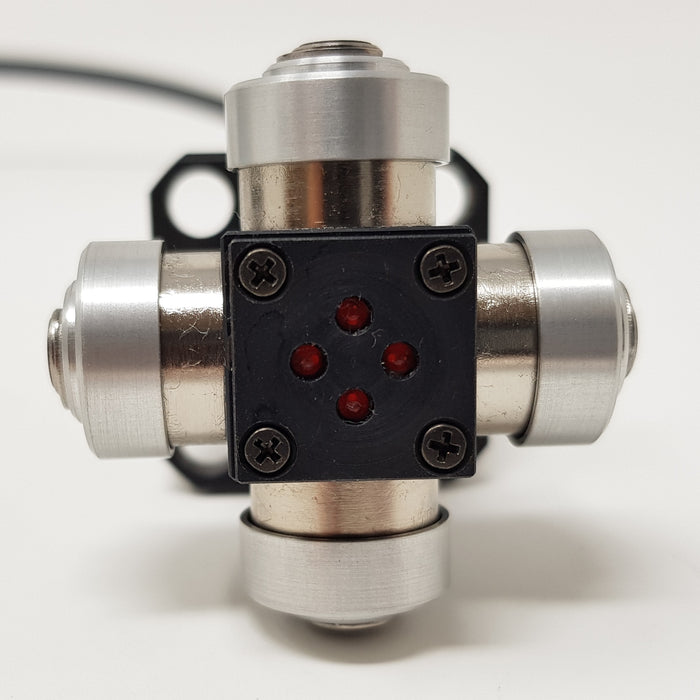

This Metrol tool setter probe is used for precise blade positioning and detection of the wear and breakage. The touch sensors are arranged and directly linked in each direction.
| Output Mode | Normally Closed |
| Pretravel | 0mm |
| Stroke | 2mm |
| Repeatability | 0.001* (recommended operating speed of 50-200mm/min) |
| Contact Life Time | 3 million |
| Protective Structure | IP67 |
| Contact Force | 2N |
| Contact Materia | Tungsten Carbide |
| Surface Finish | Grinding 4S |
| Contact Rating | DC5V-DC24V |
| Steady Current | 10mA or less |
| Rush Current | 20mA or less |
Downloads
Drawing
