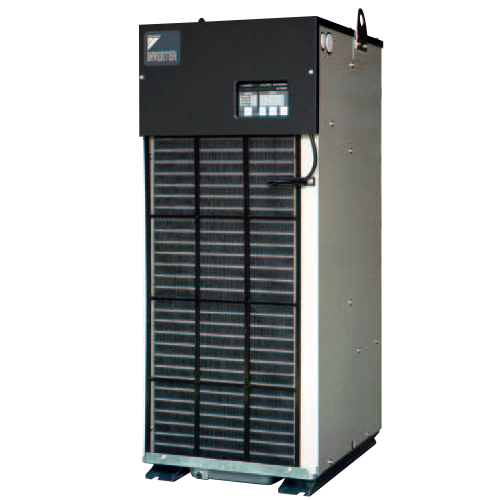

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
The connection piping fitting sizes are as follows:
Oil Inlet: Rc3/4
Oil Outlet: Rc3/4
Oil Drain: Rc1/4 (Plug Stopper)
Cooling Capacity (kW) | 2.8/3.2 |
Power Supply | AC 3-phase 200/220V 50/60Hz |
Height | 775mm |
Width | 360mm |
Depth | 440mm |
Compressor | Equivalent to 0.75kW |
Refrigerant | R410A |
Pump Discharge (L/min) | 24/28.8 |
Noise | 62dB(A) |
Weight (kg) | 56 |
Downloads
Brochure
Catalogue
Instruction Manual
Compressor
SB-22400963-01 Daikin Vibration Mount Isolator (set of 3)
Daikin
Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.
SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-22301854-01 Daikin Expansion Valve Body
Daikin
This Daikin expansion valve body is fitted on a range of 9 series cooling units
SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil
Daikin
Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.
SB-22301926-01 Daikin Expansion Valve Body
Daikin
This Daikin expansion valve body is fitted on a range of 9 series cooling units
SBAKZ-004 Daikin Expansion Valve Coil
Daikin
Expansion valve coil for the Daikin '9 series' cooling units.
SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
Pump and Motors
SB-1915112-1 Daikin 8 Series Fan Blade
Daikin
This Daikin fan blade is fitted on a range of 8 series cooling units
SBAKZ-006 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a range of the 9 series cooling units.
SB-1915112-1 Daikin 9 Series Fan Blade
Daikin
This Daikin fan blade is fitted on a range of 8 series cooling units
Control Boards
SB-22301816-01 Daikin Control Panel Assembly
Daikin
Control panel assembly for the '9 series' cooling units.
SB-22301860-01 Daikin Noise Filter Board
Daikin
This Daikin noise filter board is fitted on the majority of the 9 series cooling units.
SB-PP02858-2S Daikin Main Control Board
Daikin
This Daikin main control board is fitted to the 9 series cooling units.
Thermistors
AKZ9-OP-A5 Daikin Attached Machine Body Thermistor (Th-1)
Daikin
Attached machine body thermistor for the Daikin '9 series' cooling units
AKZ9-OP-K5 Daikin Embedded Attached Machine Body Thermistor (Th-1)
Daikin
Embedded machine body thermistor for the Daikin '9 series' cooling units
AKZ9-OP-Y5 Return Oil Thermistor (Th-9)
Daikin
Return oil thermistor for the Daikin '9 series' cooling units
SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)
Daikin
This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)
Daikin
This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)
Daikin
This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-04 Daikin Inlet Oil Temperature Thermistor (Th-4)
Daikin
This Daikin inlet oil temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-05 Daikin Outlet Oil Temperature Thermistor (Th-2)
Daikin
This Daikin outlet oil temperature themistor is fitted to a range 9 series cooling units.
SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)
Daikin
Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units
General
SB-22301869-01 Daikin Over Current Relay
Daikin
Over current relay for the Daikin '9 series' cooling units
SB-1936142-2 Daikin Series 9 Air Filter Mesh
Daikin
This Daikin filter mesh is fitted to the AKZ329 and AKJ359 cooling units
