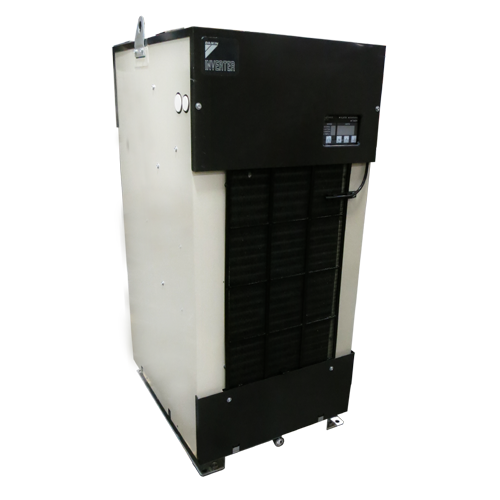

AKC359-K202 Daikin Coolant Cooling Unit
Delivery: Options Available
For any enquiry or technical support,
please contact us on 0116 478 4200
Part Number: AKC359-K202
High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this cooling unit are lubricating oil, hydraulic oil, cutting oil, (water soluble) coolant and grinding oil.The viscosity range of the oil is up to a maximum of 200 (up to ISO VG32).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
The connection piping fitting sizes are as follows:
Fluid Inlet: Rc3/4
Fluid Outlet: Rc3/4
Fluid Drain: Rc1 (Plug Stopper)
| Cooling Capacity (kW) | 3.2/3.2 |
| Power Supply | AC 3-phase 200/220V 50/60Hz |
| Height | 995mm |
| Width | 450mm |
| Depth | 560mm |
| Compressor | Equivalent to 0.75kW |
| Refrigerant | R410A |
| Total Head (Standard Point) | 10/15m |
| Circulating Volume (L/min) | 15 minimum |
| Noise | 62dB(A) |
| Weight (kg) | 105 |
Downloads
Catalogue
Instruction Manual
Compressor
SB-22400963-01 Daikin Vibration Mount Isolator (set of 3)
Daikin
Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.
SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-22301854-01 Daikin Expansion Valve Body
Daikin
This Daikin expansion valve body is fitted on a range of 9 series cooling units
SB-22301926-01 Daikin Expansion Valve Body
Daikin
This Daikin expansion valve body is fitted on a range of 9 series cooling units
SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil
Daikin
Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.
SBAKZ-016 Daikin Expansion Valve Coil
Daikin
This Daikin expansion valve coil is fitted on a range of 9 series cooling units
SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
Pump and Motors
SB-1915112-1 Daikin 8 Series Fan Blade
Daikin
This Daikin fan blade is fitted on a range of 8 series cooling units
SBAKZ-006 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a range of the 9 series cooling units.
SB-1915112-1 Daikin 9 Series Fan Blade
Daikin
This Daikin fan blade is fitted on a range of 8 series cooling units
Control Boards
SB-22301816-01 Daikin Control Panel Assembly
Daikin
Control panel assembly for the '9 series' cooling units.
SB-PP02858-301S Daikin Main Control Board
Daikin
Main control board for the Daikin 'AKC359' cooling unit.
SB-22301860-01 Daikin Noise Filter Board
Daikin
This Daikin noise filter board is fitted on the majority of the 9 series cooling units.
Thermistors
SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)
Daikin
This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)
Daikin
This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)
Daikin
This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.
SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)
Daikin
Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units
General
SB-22301869-01 Daikin Over Current Relay
Daikin
Over current relay for the Daikin '9 series' cooling units
SB-1936142-2 Daikin Series 9 Air Filter Mesh
Daikin
This Daikin filter mesh is fitted to the AKZ329 and AKJ359 cooling units
Special
SB-PP03083-01 Pressure Gauge
Daikin
This pressure gauge is fitted on a limited number of Daikin cooling units that have been designed exclusively for a specific machine tool manufactu...
