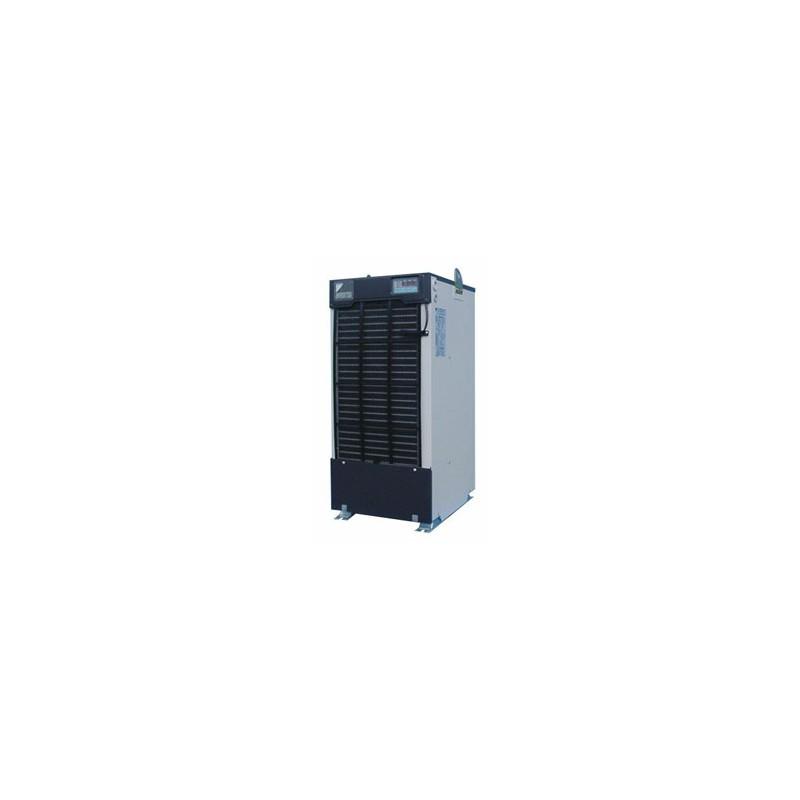

AKZ568-BCE3T-D184# Daikin Oil Cooling Unit
Delivery: Options Available
For any enquiry or technical support,
please contact us on 0116 478 4200
Part Number: AKZ568-BCE3T-D184#
High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
The connection piping fitting sizes are as follows:
Oil Inlet: Rc1 1/4
Oil Outlet: Rc1 1/4
Oil Drain: Rc1/4 (Plug Stopper)
| Cooling Capacity (kW) | 5.0/5.6 |
| Power Supply | AC 3-phase 200/220V 50/60Hz |
| Height | 1110mm |
| Width | 470mm |
| Depth | 560mm |
| Compressor | Equivalent to 1.5kW |
| Refrigerant | R410A |
| Pump Discharge (L/min) | 30/36 |
| Noise | 65dB(A) |
| Weight (kg) | 97 |
Downloads
Brochure
Instruction Manual
Compressor
SB-1936172-1 Daikin 8 Series Expansion Valve Body
Daikin
Expansion valve body for the Daikin cooling units
SB-1936195-1 Daikin Expansion Valve Coil
Daikin
This Daikin expansion valve coil is fitted on a range of 8 series cooling units
SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)
Daikin
These Daikin compressor vibration mount isolators are fitted underneath the compressor on a wide range of the 8 and 9 series cooling units.
SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
Pump and Motors
SB-SP1369 Daikin Vibration Mount Isolators (set of 4)
Daikin
Vibration mount isolators for the pump and motor assemblies on the Daikin cooling units.
SB-1936073-1 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a wide range of the 8 series cooling units.
Control Boards
SB-1936175-1 Daikin Control Panel Assembly
Daikin
This Daikin control panel assembly is fitted to the majority of 8 series cooling units.
SB-PP00365-168S Daikin Main Control Board
Daikin
This Daikin main control board is fitted to the 8 series cooling units.
Thermistors
AKZ8-OP-A10 Daikin Attached Machine Body Thermistor (Th-5)
Daikin
Attached machine body thermistor for the Daikin '8 series' cooling units
AKZ8-OP-K10 Daikin Embedded Attached Machine Body Thermistor (Th-5)
Daikin
Embedded machine body thermistor for the Daikin '8 series' cooling units
AKZ8-OP-Y5 Return Oil Thermistor (Th-9)
Daikin
Return oil thermistor for the Daikin '8 series' cooling units
SB-Y4353007-1 Liquid Inlet Thermistor (Th-4)
Daikin
Liquid inlet thermistor for the Daikin '8 series' cooling units
SB-Y4453121-2 Daikin Air (Room) Temperature Thermistor (Th-3)
Daikin
Air (Room) temperature (Th-3) thermistor for the '8 Series' cooling units
SB-Y4353007-2 Liquid Outlet Thermistor (Th-2)
Daikin
This Daikin liquid outlet thermistor is fitted to a range of 8 series cooling units
SB-Y4453125-1 Daikin Thermistor Assembly (Th-6,7,8)
Daikin
This Daikin thermistor assembly is fitted to a range of 8 series cooling units
General
SB-Y4352900-2 Daikin Over Current Relay
Daikin
Over current relay for the Daikin '8 series' cooling units.
SB-Y4453074-1 Daikin Filter Mesh
Daikin
Filter mesh for the Daikin '8 series' and '9 series' cooling units
Special
SB-HP20319 Daikin 8 Series Oil Level Gauge
Daikin
Oil level gauge for the Daikin 'AKZ8' series cooling units
SB-HP30995 Daikin 8 Series Air Breather
Daikin
Air breather for the Daikin 'AKZ8' series cooling units
